Name: TURNING VANE AND RAIL
Brand: DCL Supply Ltd

Product Description

The 4″ Acoustical Vane was specifically designed for projects that demand quiet operating systems. This vane provides an easy means for the construction of consistent double wall turning vane systems. Turning vane systems aid in directing air around mitered elbows.

PROrail^®, MONOrail^® , and ECONOrail^® all provide easy means of securing turning vanes for the purpose of directing air around mitered elbows. See Spec Sheets below for details.

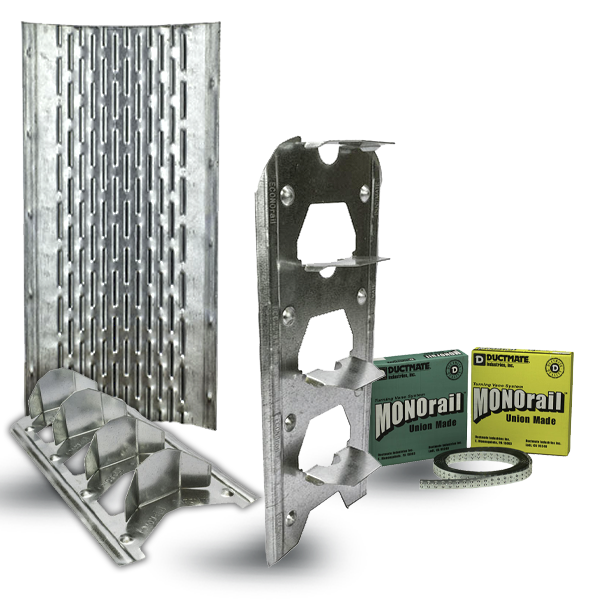

2″ & 4″ Double Wall and 4″ Acoustical Turning Vanes.
PROrail^®, MONOrail^® , and ECONOrail^® are vane rails for a variety of needs (see characteristics & Spec Sheets below)

ACOUSTICAL VANE

- Filled with 1.3 lb insulation to reduce and absorb noise
- Perforated facing
- Dimpled seam for superior strength
- Consistent product quality
- Available in a variety of specialty metals
- Union made in the U.S.A
DOUBLE WALL TURNING VANE
- Dimpled seam for superior strength
- Consistent product quality
- Available in a variety of specialty metals
- Union made in the U.S.A.
PRORAIL^®
- Fastest method of assembling vane to rail
- PROrail tabs friction-fit into double-wall turning vane, ensuring connection up to 57 lbs. of pull-out force per tab
- Pressure tested to 15″ w.g. with no separation
- Assembly is quick and easy
- PROrail tabs secure vane to avoid misalignment
- stamped from hot-dipped galvanized steel
- Patented product
- Available in specialty metals
MONORAIL^®
- Slotted for even spacing of vane
- Rigid design for reduced vibration
- No special tools required
- Fabricated with precision equipment
- Available in specialty metals
ECONORAIL^®
- Slotted for even spacing of vane
- Rigid design for reduced vibration
- No special tools required
- Fabricated with precision equipment
- Available in specialty metals
