DM35 FLANGE AND CORNERS

Name: DM35 FLANGE AND CORNERS
Brand: DCL Supply Ltd

Items: Dc35 corners - galv (200/ctn) item #: 10002 Dciiib corners - galv (250/ctn) item #: 10001 Dciiib corners - round hole - galv (250/ctn) item #: 10001r Ductmate '35' @ 10' - galv - 750'/bdl item #: 100000750 Ductmate '35' @ 20' - galv - 1000'/bdl item #: 100001000 Ductmate '35' @ 20' - galv - 3000'/bdl item #: 100003000

Product variants

Product Description

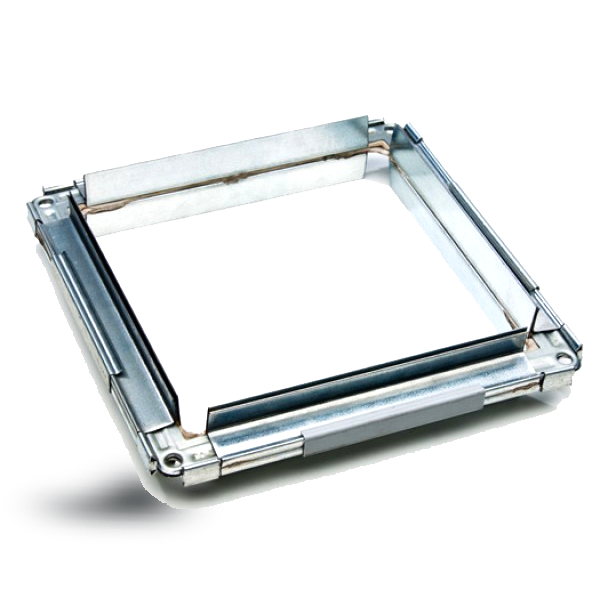

The Ductmate 35 self sealing rectangular duct connector systems are used to connect rectangular ducts when a rigid, leak-free connection is required.

Strong and virtually leak-free rectangular duct connection systems. Ductmate 35 connection systems consist of roll-formed flanges, corner pieces, gasket, and cleat. The flanges attach to the duct wall and have an integral mastic which allows the flange to seal itself to the duct. Corner pieces are used to add rigidity to the flange, hold the ductwork together, and provide a sealing surface for the gasket. The gasket serves as a seal between the flanges. The cleat insures even compression of the gasket along the length of the flange.
Simple to install
No additional sealing required
Available in specialty metals
Innovative downset corner insures a proper seal
Patented corner clips ease installation
Sealing materials meet NFPA 90A and B Class 1 requirements
The Ductmate '35' system is not recommended for applications with duct gauges heavier than 16 GA or lighter than 26 GA
Virtually no leakage at up to 10' WG positive pressure or down to 10' WG negative pressure. Consult Ductmate for static pressures exceeding these specifications
